5.5-22kw Small Roots Blower Tri Lobe Cast Iron for Pressing Machine

  • 1
  • 2
  • 3

Brand Name : BC

Model Number : BC6005

Certification : ISO9001 / ISO14001

Place of Origin : Yixing, Jiangsu, China

MOQ : 1 set

Price : USD 1550-2400 per set

Payment Terms : L/C, T/T

Supply Ability : 150 sets / month

Delivery Time : 15 days

Packaging Details : wooden case

material : cast iron

pressure : 10 kpa - 80 kpa

colour : customizable

port dia : 80 ( 3'' )

Contact Now

1.5-200KW Three Lobe Roots Blower For Various Uses / Roots Style Blower

1 Company brief

By advanced production & test equipment, technology and management method introduced from abroad, by

advanced management software, B-Tohin Machine ( Jaingsu ) Co.,Ltd. is committed to the production of high

efficient and energy-saving blowers. And it's our sincere wish that we can supply high-quality products and good service.

5.5-22kw Small Roots Blower Tri Lobe Cast Iron for Pressing Machine

2 BC Type Performance Parameters Sheet

Type Port Dia Speed Inlet airflow(m3/min)and shaft power(KW)at different conditions
10kpa 20kpa 30kpa 40kpa 50kpa 60kpa 70kpa 80kpa
rpm m3/min KW m3/min KW m3/min KW m3/min KW m3/min KW m3/min KW m3/min KW m3/min KW
BC6005 80(3'') 850 5.01 1.66 4.58 2.95 4.26 3.90 3.99 4.87 3.75 6.00 3.54 7.13
1000 6.07 1.95 5.65 3.47 5.33 4.59 5.05 5.73 4.82 7.06 4.60 8.39 4.40 9.45 4.22 10.73
1150 7.13 2.24 6.71 3.99 6.39 5.28 6.11 6.59 5.88 8.12 5.67 9.65 5.46 10.87 5.29 12.33
1250 7.84 2.44 7.42 4.34 7.10 5.74 6.82 7.16 6.59 8.82 6.38 10.49 6.17 11.82 5.99 13.41
1400 8.91 2.73 8.48 4.86 8.16 6.43 7.89 8.02 7.65 9.88 7.44 11.74 7.23 13.24 7.06 15.02
1500 9.61 2.92 9.19 5.21 8.87 6.89 8.59 8.60 8.36 10.59 8.15 12.58 7.94 14.18 7.76 16.09
1650 10.68 3.22 10.25 5.73 9.93 7.58 9.66 9.46 9.42 11.65 9.21 13.84 9.00 15.60 8.83 17.70
1800 11.74 3.51 11.31 6.25 11.00 8.27 10.72 10.32 10.49 12.71 10.27 15.10 10.07 17.02 9.89 19.31

3 Structure Drawings

5.5-22kw Small Roots Blower Tri Lobe Cast Iron for Pressing Machine

1) Working smoothly as helical timing gears is adopted.

2) It is flexible mounting ways because of the same structure in inlet and outlet.

3) It adopts more reasonable bearing structure, which can increase the bearing operation life.

4) It is low noise, vibration and energy consumption.

5) Optimized lobe curve is adopted for reducing blower s internal leakage, improving blower s efficiency and reducing running temperature.

6) After shaft s diameter enlarged, no deformation and collision will occur under higher load pressure as the blower s strength is improved.

7) The synchromesh gear adopts straight tooth structure for samooth operation.

8) Deep groove ball bearing of high precision and low friction factor is selected for lowering operation noise. In addition, because of larger size bearing matched for enlarged shaft diameter, the bearing s load capacity is enhanced and its service life is extended.

9) Low noise and vibration , compact and economical energy consumption.

4 Optional Accessories

1)Discharge Silencer ( vertical airflow )

5.5-22kw Small Roots Blower Tri Lobe Cast Iron for Pressing Machine

2) Flexible Joint

5.5-22kw Small Roots Blower Tri Lobe Cast Iron for Pressing Machine

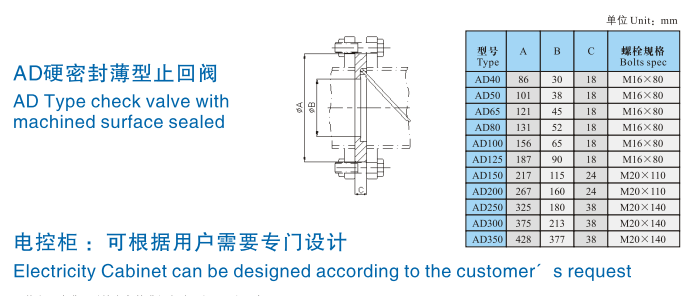

3) AD Type check valve with machined surface sealed

5.5-22kw Small Roots Blower Tri Lobe Cast Iron for Pressing Machine

5.5-22kw Small Roots Blower Tri Lobe Cast Iron for Pressing Machine

5.5-22kw Small Roots Blower Tri Lobe Cast Iron for Pressing Machine
